ANI F4/SAM MY21

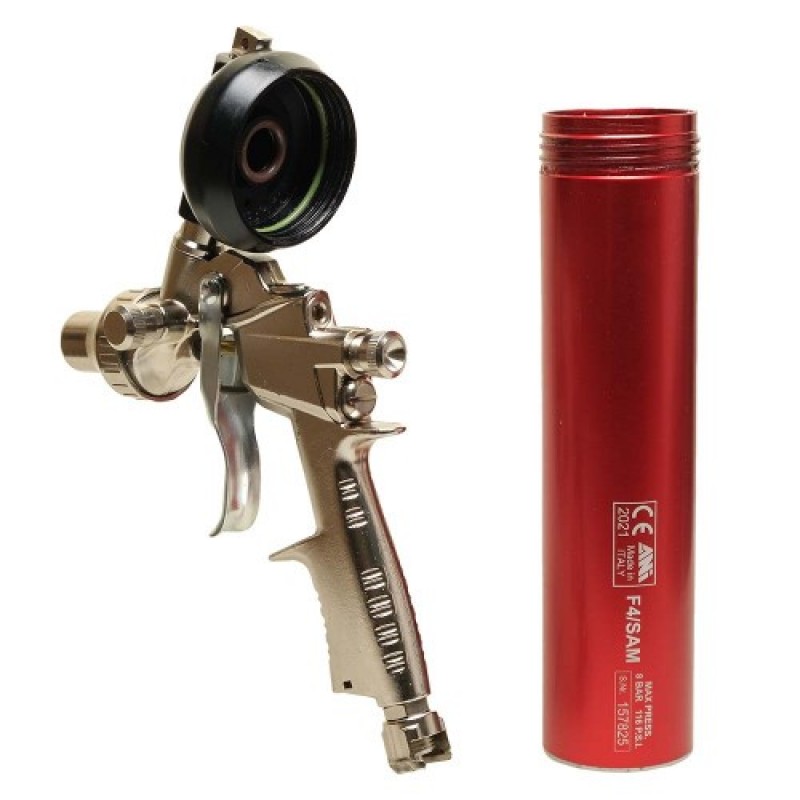

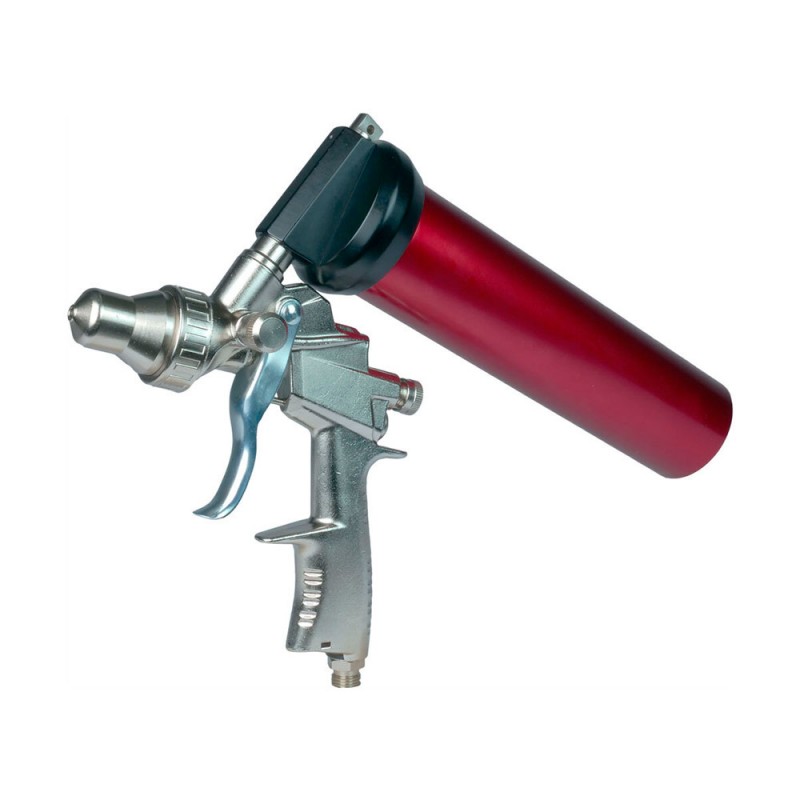

Professional gun for extrusion and spraying of single-componentns sealants products in plastic or metallic cartridges. Its spray nozzle regulator can deliver the product in various grains (orange-peel effects), form beads of various widths using the threaded cap (supplied as optional) and the nozzles supplied together with the cartridges. The air pressure is directly applied on the cartridge plunger. When the trigger is released, the valve discharges the residual air of the spray gun allowing thus a safe disassembling of the feed cup. The standard gun is supplied with spraying cap for orange peel effect. Available on demand with threded cap onto which the nylon nozzle, usually supplied with the cartridges, can be screwed. Also a molded cap for fan spray pattern can be supplied on demand.
• Die-cast aluminium alloy body with electrolytic nickel treatment and anodized aluminium cartridge holder tube.
• Grain thickness regulator (orange peel effect) and product flow regulator
• Zinc-plated steel lever; brass and aluminium inner parts
• Steel springs and internal; washers in PTFE and NBR
• FIELDS OF APPLICATION: Application of single-component sealants in 310 ml plastic cartridge or alluminium cartridge
• OPERATING TEMPERATURE: -10°C , +90°C
• OPERATING PRESSURE: 1.5 ÷ 8 bar
• DIMENSIONS: 340x250x68 mm
• NET WEIGHT: 0,985 kg
